Introduction

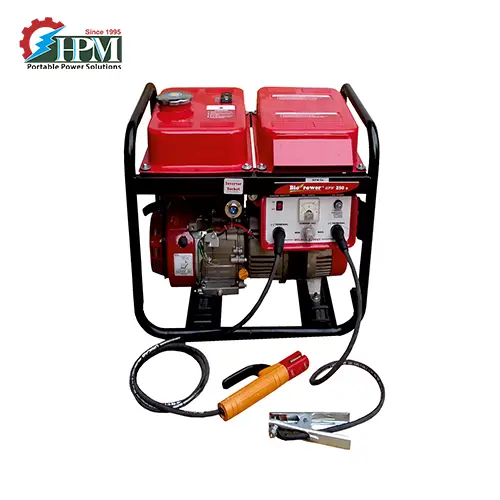

Introducing the Himalayan Power Professional Welding Generator, the world’s most portable, powerful, and cost-effective arc welding machine. Engineered for high-quality welding, it is capable of handling E 7018 structural welding rods up to 4mm with ease. With a maximum output of 200 Amps and a continuous runtime of 12 hours, this machine is ideal for both professional welders and industrial applications.
Product Description
The Himalayan Power Professional Welding Generator is built for superior performance, featuring a phase-controlled SCR rectifier that delivers a stable DC welding output from 50 to 200 Amps. The multiphase brushless alternator with a rear earth magnet rotor ensures consistent power, making it perfect for structural welding and high-precision tasks.
Equipped with a powerful 7.5 HP HM170FB engine, this generator offers a fuel-efficient design with a 12-liter petrol tank, ensuring up to 12 hours of continuous operation at 60% duty cycle. It supports a working voltage of 20V to 32V and features a high open circuit voltage of 70V for smooth arc starts. The recoil start system, electronic oil alert, and fuel level gauge make this machine user-friendly and highly reliable.

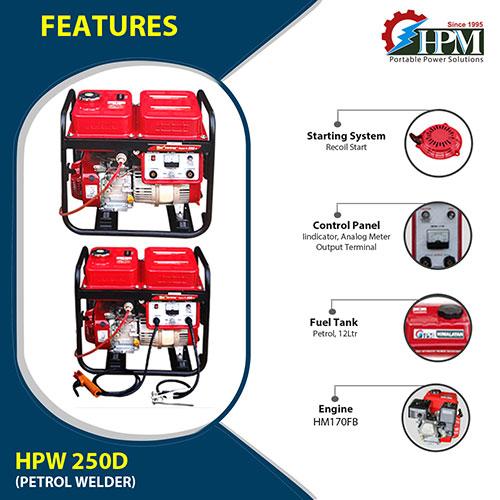

Key Features
- Brand: Himalayan Power
- Model: Professional Welding Generator
- DC Welding Output: 50 to 200 Amps
- Electrode Diameter: 2.6mm to 4mm (E 7018)
- Welding Output at 100% Duty Cycle: 175 Amps
- Rectifier Type: SCR, Phase-Controlled 3-Phase Rectifying Bridge
- Alternator Type: Multiphase, Brushless with Rear Earth Magnet Rotor
- Working Voltage: 20V to 32V
- Open Circuit Voltage: 70V (Max)
- Current Regulation: 75 - 200 Amps
Engine Details
- Model: HM170FB
- Type: Single Cylinder, Air-Cooled, 4-Stroke, OHV 25° Inclined
- Maximum Power: 7.5 HP
- Bore x Stroke: 70mm x 58mm
- Displacement: 223cc
- Starting System: Recoil Start
- Ignition System: TCI (Transistor Controlled Ignition)
- Fuel Type: Standard Petrol
- Fuel Tank Capacity: 12 Liters
- Fuel Consumption: 1 Liter per hour (at 60% Duty Cycle)
- Continuous Operating Time: 12 Hours
- Lubricating Oil Capacity: 600ml
- Lubricating Oil Consumption: 2.5 gm/hr
Standard Accessories
- Tool Kit: 1 Set
- Welder Holder: 1 Set
- Earthing Clamp with 3M Cable: 1 Set
- Oil Funnel: 1 Piece
- Owner’s Manual: 1 Piece
Panel & Additional Features
- Auxiliary AC Output: 230V - 50Hz (Inverter 1.2 KVA, Optional)
- Overload Protection (NFB): Yes (Inverter)
- Power Indicator: No
- Ampere Meter: Yes
- Engine Oil Protection: Yes (Electronic Oil Alert & Indicator)
- Fuel Level Gauge: Yes
Size & Weight
- Dimensions (LxWxH): 600 x 450 x 530mm
- Dry Weight: 50kg
Applications
- High-Class Structural Welding
- Professional and Industrial Welding
- Fieldwork & Outdoor Welding
- Construction Sites & Repair Shops
- Heavy-Duty Fabrication
Warranty & Support
- Warranty: Standard Manufacturer Warranty
- After-Sales Support: Spare parts and service available at economical prices
With its compact design, professional-grade performance, and extended runtime, the Himalayan Power Professional Welding Generator is the ultimate fuel-efficient welding solution for demanding environments.
